Frost france spécialiste dans les convoyeurs aériens

FROST France has developed a range of “power and free”overhead conveyors




    Your Frost France contact : Olivier Lefevre.


These overhead “power and free” conveyors are made to handle loads from 1 kg to 5000 kgs and more, in various  industries  such as  surface treatment, automotive and agribusiness.

Constructed on the basis of our forged chains X348, X458 and X678 overhead conveyors, they provide to your installations the qualities that become indispensable to most lines, especially in the surface treatment and coating lines.
Simplicity, reliability and spare parts pereniality.

​Offer yourself the most reliable conveyor of the market.

DIMENSIONS AND CAPACITIES OF FROST FRANCE “P&F” CONVEYORS :

BR range includes 5 sizes of conveyor according to the loads

  • • BR 32 for loads up to 100 kg on 2 trolleys
  • • BR 3 for loads up to 400 kg on 2 trolleys
  • • BR 4 for loads up to 1 000 kg on 2 trolleys
  • • BR 446  for loads up to 2 000 kg on 2 trolleys(circuit -200m)
  • • BR 466  for loads up to​ 2 000 kg on 2 trolleys(circuit -500m)

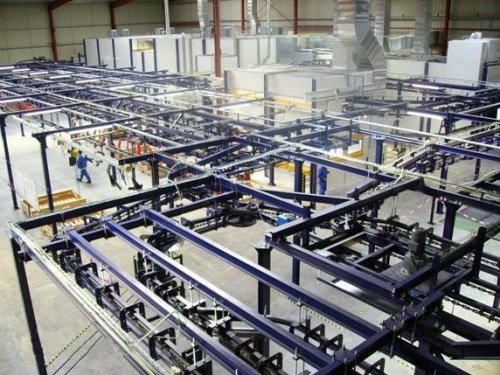

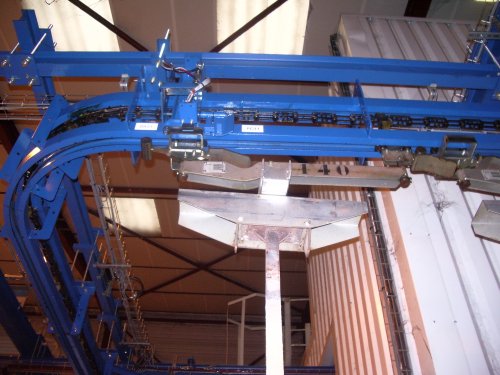

convoyeurs aériens frost France

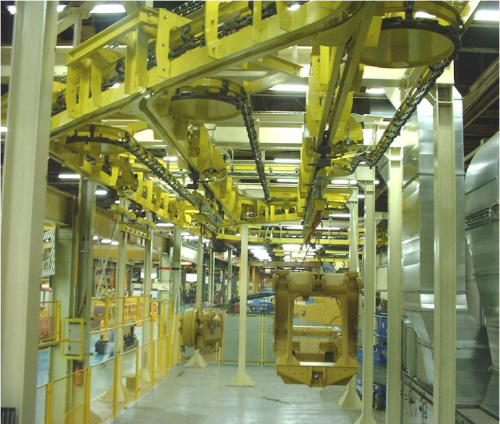

game de convoyeurs aériens frost France





These values can fluctuate depending on the type of circuit and loads.

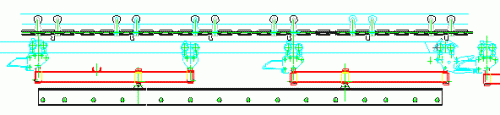

Same load bar can also include 3 or 4 trolleys (and more) thus increasing​ the load capacity of the conveyor.

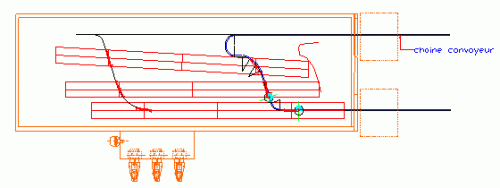

dessin d'un circuit de convoyeur aérien Frost France





They allow the establishment of :

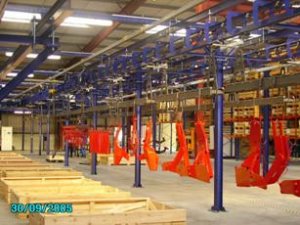

game de convoyeurs aériens frost France

  • Stops Station  to work on stopped load without penalizing the rest of the installation.
    Buffer stocks with accumulation of loads  in the direction of the length or of the width to optimize the process areas.
    Several chains speeds according to the stages of the process.
    Deviations to many work stations or bypass a step in the process.
    Drop sections for better ergonomics of loading or unloading or applications (especially for heavy or long loads).
    Loads advance and retreat systems in the treatment tunnels boxes..
    Barcode coding systems for tracking and management of the loads on a case by case.
    Overall supervision systems of conveyors and equipment for better traceability of the production.

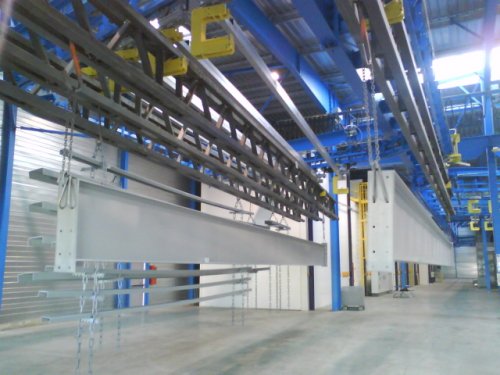

FROST France also has a real expertise in the handling of long loads and / or heavy.

convoyeurs aériens frost France

The techniques we have developed allow traffic through narrow spaces for loads up to 18 meters long and about 7 tons maximum.

For loads from 7 to 10 tons, we at your disposal for more specific handling systems (contact us).

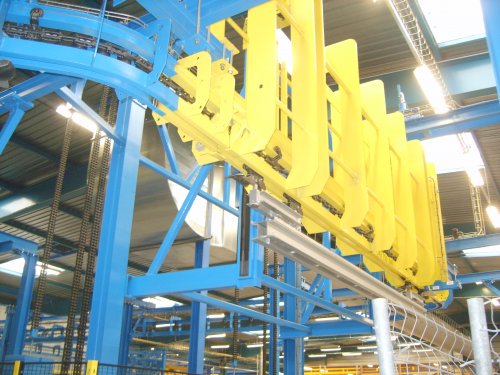

Our change direction with one side chain system allows to restart a load at 180° in small spaces with a single chain pull, giving this technique an absolute reliability unlike other types of conveyor.
